Originally posted by: Lonyo
i7 is supposed to be the high end.
It would be weird if i5 managed to outperform the i7 platform, and a bit of a backwards move from Intel.
Originally posted by: ilkhan
IDC: isn't it still a hop over QPI? Its just a physically shorter connection. Actually, how is that gonna work? The lynnfields shouldn't have the second die, but they'll still have the PCI-E...
plion: Unless you are running high end SLI (needing x16/x16 vs x8/x8, the i5 might not be a bad way to go. Single GTX285 is gonna run fine on a single x16 connection (i5 single x16 or x8/x8, i7 allows x16/x16.) I agree with IDC, unless you are planning on getting the board/etc now, sell the i7 until you are ready to build.
Originally posted by: ilkhan
thats what I recall as well. Did we ever reason out if that was for clarkdale/arrandale only, or did the QPI->PCI-E scheme work for the lynnfields too? There's no separate die for lynnfield, of course.
Originally posted by: IntelUser2000
Originally posted by: ilkhan
thats what I recall as well. Did we ever reason out if that was for clarkdale/arrandale only, or did the QPI->PCI-E scheme work for the lynnfields too? There's no separate die for lynnfield, of course.
Here's the wafer for Lynnfield: http://img257.imageshack.us/my...age=lynnfieldwafer.jpg
and Bloomfield: http://img521.imageshack.us/my...ge=bloomfieldwafer.jpg
Do you notice a difference? On the shot for Lynnfield, there's something between L3/Core/IMC and the QPI connection, that isn't there in the Bloomfield shot. If you aren't sure about which section represents what, look here for a reference shot of Bloomfield: http://chip-architect.com/news/Shanghai_Nehalem.jpg
I bet that's the PCI Express controller.
I'd think that's conclusive enough evidence that PCI Express controller is integrated into Lynnfield.
very good find. Useful info, both of you.Originally posted by: Idontcare
Originally posted by: IntelUser2000
Originally posted by: ilkhan
thats what I recall as well. Did we ever reason out if that was for clarkdale/arrandale only, or did the QPI->PCI-E scheme work for the lynnfields too? There's no separate die for lynnfield, of course.
Here's the wafer for Lynnfield: http://img257.imageshack.us/my...age=lynnfieldwafer.jpg
and Bloomfield: http://img521.imageshack.us/my...ge=bloomfieldwafer.jpg
Do you notice a difference? On the shot for Lynnfield, there's something between L3/Core/IMC and the QPI connection, that isn't there in the Bloomfield shot. If you aren't sure about which section represents what, look here for a reference shot of Bloomfield: http://chip-architect.com/news/Shanghai_Nehalem.jpg
I bet that's the PCI Express controller.
I'd think that's conclusive enough evidence that PCI Express controller is integrated into Lynnfield.
If it hasn't been said before, let me be the first to say "Damn, you're good!" :thumbsup:
Awesome post, value/word density is very high.

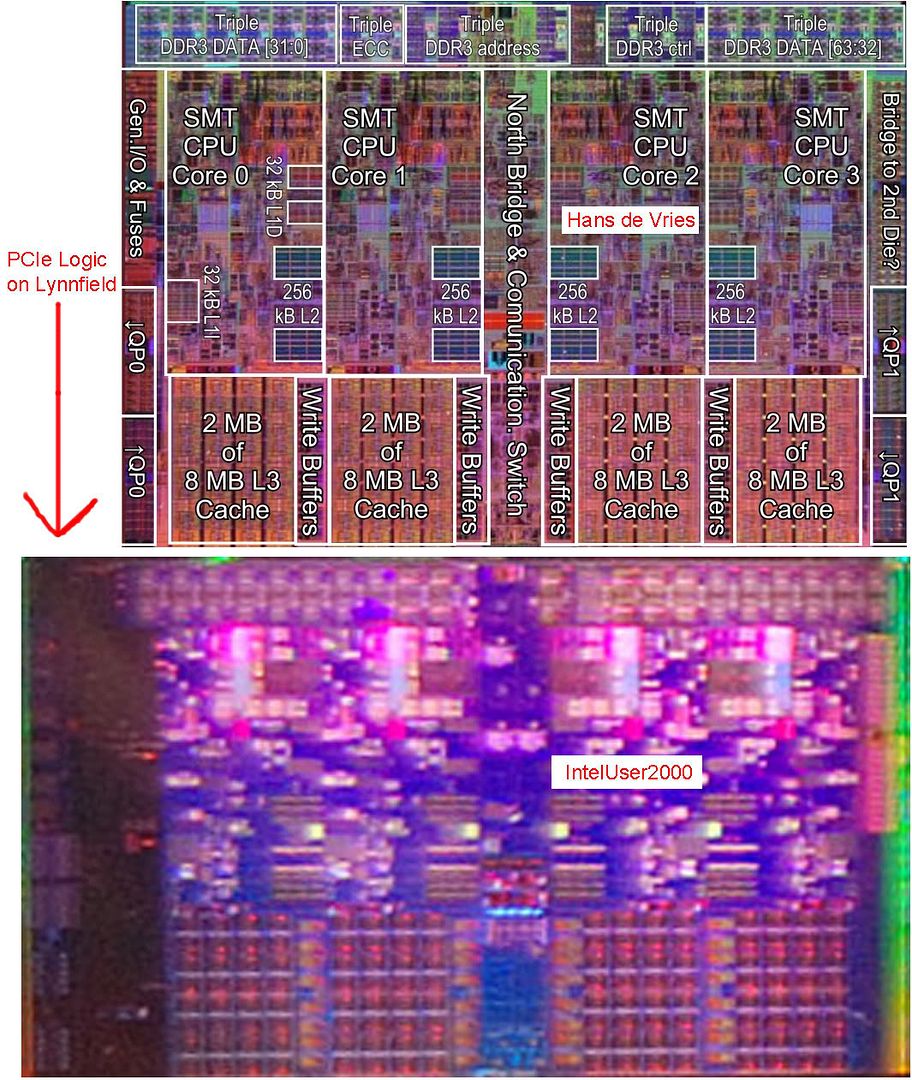

Here I rotated, cropped, and scaled the Lynnfield chip to that of Hans' annotated Nehalam shot:
http://i272.photobucket.com/al...ldversusBloomfield.jpg
As you say, the differences are self-evident and conclusive. Good find!
i7 (s1366) will be getting a 6 core gulftown option. Nor will the extra memory bandwidth hurt. So definitely. We're still not sure it'll be drop-in compatible, but it'll be s1366.Originally posted by: phillyman36
What if you arent really a gamer? Would i7 be a better choice for video editing than a i5?
Originally posted by: ihyagp
I'm curious about how PCIe latency affects framerates too. Anyone here have a board with a single PCIe x16 on the northbridge, and another on the southbridge, and is willing to do benchmarks comparing a (modern) GPU in one vs the other? That would shed some light on this. Obviously the difference in latency won't be as big as moving it fron the northbridge to the CPU die, but its the closest thing we have now.
Originally posted by: Idontcare
Originally posted by: ihyagp
I'm curious about how PCIe latency affects framerates too. Anyone here have a board with a single PCIe x16 on the northbridge, and another on the southbridge, and is willing to do benchmarks comparing a (modern) GPU in one vs the other? That would shed some light on this. Obviously the difference in latency won't be as big as moving it fron the northbridge to the CPU die, but its the closest thing we have now.
Would the comparisons between SLI rigs that have NF200 versus one that do not have NF200 for SLI provide equivalent insight into the order-of-magnitude impact of adding latency/hops to the PCIe topology?
3-way SLI & FarCry 2: X58 vs. X58 + NF200
NF200 "True" 3-Way SLI Preliminary Results
If we take that to be an example of "how bad can we make it?" then it should give us some insight into "how much room for improvement is there when we try and make it even better than current x58?"
The answer would appear to be "a few fps" or a couple percentage points.
Originally posted by: IntelUser2000
Here's a good comparison of low and high res gaming performance. The problem with i7 wasn't merely that it wasn't much faster than the Core 2 Quads, but rather being even slower in some cases.
Originally posted by: ihyagp
Not sure. Seems like a single gpu would be the best case for testing this. In fact I'm pretty sure the interconnect between X58 and NF200 is just PCIe x16, so there really isn't any added bandwidth here.
Originally posted by: Denithor
Originally posted by: ihyagp
Not sure. Seems like a single gpu would be the best case for testing this. In fact I'm pretty sure the interconnect between X58 and NF200 is just PCIe x16, so there really isn't any added bandwidth here.
In fact, it looks to me like the NF200 chip simply adds overhead, restricting bandwidth slightly and hurting performance.
So much for "True SLI" - nV should stick with making GPUs and leave chipsets to the chip producers.
Originally posted by: Idontcare
Thanks, I appreciate the sanity check, so I'm not entirely off-base on this I guess.
Still though I like the new power numbers that Anand published. It's actually quite a nice showing for Nehalem.
Not sure why nobody actually crunches the data into performance/watt metrics anymore, guess its not sexy enough anymore. It's so 2007.
I went ahead and crunched Anand's data to convert it to performance/watt:
CPU...................................QX9770 (3.2GHz)..........Core i7-965 (3.2GHz).............Improvement
POV-Ray..............................11.4 PPS/Watt..............17.5 PPS/Watt......................53%
Cinebench (1 thread)............20.3 CBMarks/Watt.......26.6 CBMarks/Watt...............31%
Cinebench (max threads)......61.8 CBMarks/Watt.......81.5 CBMarks/Watt...............32%
3dsmax 9 SPECapc CPU........0.060 /Watt..................0.084 /Watt..........................41%
x264 HD Encode Test............0.32 fps/Watt................0.44 fps/Watt.......................38%
DivX 6.8.3............................2.61 Watts...................1.84 Watts............................29%
Windows Media Encoder........2.01 Watts....................1.34 Watts............................33%
Age of Conan.......................0.35 fps/Watt................0.46 fps/Watt........................31%
Race Driver GRID.................0.30 fps/Watt...............0.34 fps/Watt........................15%
Crysis..................................0.14 fps/Watt...............0.16 fps/Watt........................15%
FarCry 2..............................0.32 fps/Watt................0.42 fps/Watt........................34%
Fallout 3...............................0.25 fps/Watt...............0.37 fps/Watt........................45%
Unless I made a mistake in the math the i7 beat the QX9770 in every test. The average percent power consumption reduction per unit of work being done is 33% for the i7 over yorkfield.
Now I am finally seeing the 30-40% power consumption reduction numbers I was expecting once performance is normalized Me much happier now!
Originally posted by: Just learning
Are the first Core i5s going to be 32nm? Or do those come later?
